Product Description
Product Overview: Heat Shrink End Caps
The Heat Shrink End Caps are an essential product for securing and
protecting electrical connections in various industrial
applications. This pack of 100 pieces is designed to provide a
secure seal and protection against moisture, dirt, and other
environmental elements.
Key Features
- Tensile Strength: 10.4 MPa
- Dielectric Strength: 15 KV/mm
- Rohs Compliant: Yes
- Package Quantity: 100 Pieces
- Uv Resistance: Excellent
Features
- Product Name: Heat Shrink End Caps
- Color: Black
- Operating Temperature: -55°C To +125°C
- Flammability: UL 224 VW-1
- Shrink Ratio: 2.5:1
- Package Quantity: 100 Pieces
- Commonly used in electrical and telecommunications applications
- Made of durable cross-linked polyolefin material
- Provides excellent protection against moisture and corrosion

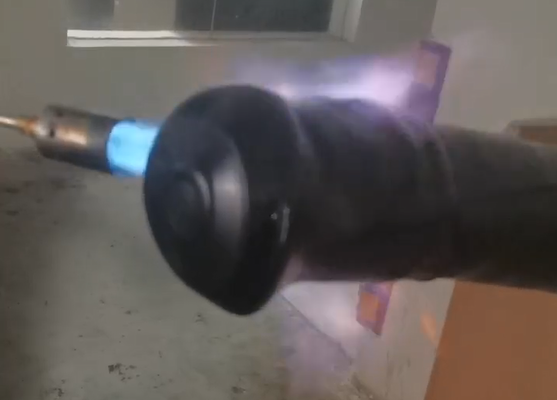

- Can be easily applied using a heat gun
11.UV Resistance
Technical Parameters
| Attribute | Value |
|---|
| Material | Polyolefin |
| UV Resistance | Excellent |
| Shrink Ratio | 2.5:1 |
| Operating Temperature | -55°C to +125°C |
| Size Range | 10mm - 250mm |
| Flammability | UL 224 VW-1 |
| Dielectric Strength | 15 KV/mm |
| Chemical Resistance | Excellent |
| Elongation at Break | 300% |
| Water Absorption | 0.2% |
Applications
The Heat Shrink End Caps by LONGCHUANG, model number LC-FEP, are commonly used in electrical and
telecommunications applications. These end caps are made of
cross-linked polyolefin, a highly durable and versatile material
that is perfect for protecting and insulating cables and wires.
Brand Name: LONG
Model Number: LC-FEP
Place of Origin: Jiangsu, China
Customization
Customized logo
Min. order: 100
Customized packaging
Min. order: 100
Graphic customization
Min. order: 100
Support and Services
Technical Support and Services for Heat Shrink End Caps
- Product selection and recommendation
- Installation and usage instructions
- Troubleshooting assistance
- Customization options
Packing and Shipping
Packaging Details: According to the tape size
Packing size: 46cm*46cm*45cm
Port: Any ports of China
Dimensions
| No | Ordinary specification: diameter*high(mm) | Ordinary specification: diameter*high(mm) | Ordinary specification: diameter*high(mm) | Applicable wire outer diameter Φ |
| 1 | 10×30 | 10×40 | 10×50 | 7—9 |
| 2 | 13×30 | 13×40 | 13×80 | 7—12 |
| 3 | 15×40 | 15×50 | 15×100 | 11—13 |
| 4 | 18×40 | 18×50 | 18×100 | 13—15 |
| 5 | 20×40 | 20×60 | 20×100 | 14—18 |
| 6 | 23×40 | 23×50 | 23×60 | 15—20 |
| 7 | 25×40 | 25×60 | 25×65 | 18—22 |
| 8 | 30×50 | 30×70 | 30×100 | 22—27 |
| 9 | 35×50 | 35×70 | 35×100 | 27—30 |
| 10 | 40×60 | 40×70 | 40×120 | 30—35 |
| 11 | 45×60 | 45×70 | 45×120 | 35—40 |
| 12 | 50×70 | 50×80 | 50×120 | 40—45 |
| 13 | 55×70 | 55×80 | 55×120 | 45—50 |
| 14 | 60×80 | 60×90 |
| 50—55 |
| 15 | 65×80 | 65×90 | 65×120 | 55—60 |
| 16 | 70×90 | 70×120 |
| 60—65 |
| 17 | 75×90 | 75×120 |
| 65—70 |
| 18 | 80×100 | 80×120 |
| 70—75 |
| 19 | 85×100 | 85×120 |
| 75—80 |
| 20 | 90×120 | 90×150 | 140×180 | 80—90 |
| 21 | 95×120 | 95×150 |
| 90—95 |
| 22 | 100×130 | 100×160 | 150×180 | 90—95 |
| 23 | 110×130 | 110×160 | 160×180 | 95—110 |
| 24 | 120×130 | 120×160 |
| 110—120 |
| 25 |
| 130×160 | 130×180 | 120—130 |
| 26 |
| 140×160 | 140×180 | 130—140 |
| 27 |
| 150×160 |
| 140—150 |
| 28 |
| 160×160 |
| communication cable |
| 29 | Inflatable cap |
|
|
|
| 30 |
|
| (Patent spring-type) exhaust cap | power cable |
| 31 |
|
| (Patent bypass valve) exhaust cap | high voltage cable |
