Excellent Insulating Heat Shrink end caps for Long-Lasting
Performance and Durability
Product Description:

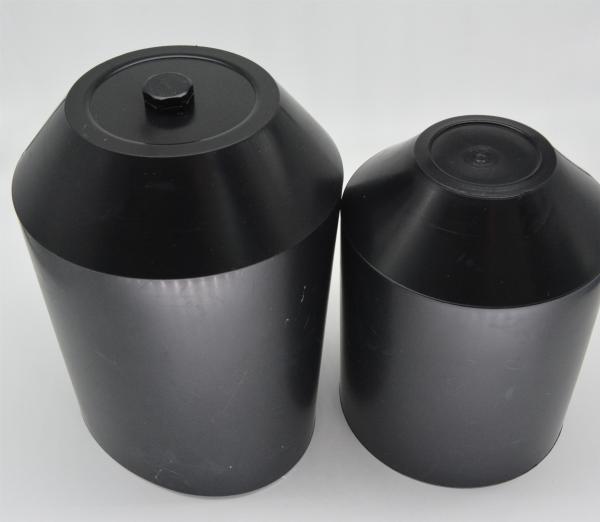

Heat Shrink End Caps
Heat shrink end caps are essential for protecting and insulating
cable ends in any electrical system.
Features
- Dielectric Strength: 15 KV/mm
- Package Quantity: 100 Pieces
- Elongation At Break: 300%
- Size Range: 10mm - 250mm
- Tensile Strength: 10.4 MPa
6. Easy to Install, Environmentally Friendly
Features:
- Product Name: Heat Shrink End Caps
- Chemical Resistance: Excellent
- Size Range: 10mm - 250mm
- Dielectric Strength: 15 KV/mm
- Water Absorption: 0.2%
- Commonly Used in Electrical and Telecommunications Applications
- Prevents the Ingress of Moisture and Contaminants
- Protects Against Electrical Problems Caused by Short Circuits or
Corrosion
Dimensions
| No | Ordinary specification: diameter*high(mm) | Ordinary specification: diameter*high(mm) | Ordinary specification: diameter*high(mm) | Applicable wire outer diameter Φ |
| 1 | 10×30 | 10×40 | 10×50 | 7—9 |
| 2 | 13×30 | 13×40 | 13×80 | 7—12 |
| 3 | 15×40 | 15×50 | 15×100 | 11—13 |
| 4 | 18×40 | 18×50 | 18×100 | 13—15 |
| 5 | 20×40 | 20×60 | 20×100 | 14—18 |
| 6 | 23×40 | 23×50 | 23×60 | 15—20 |
| 7 | 25×40 | 25×60 | 25×65 | 18—22 |
| 8 | 30×50 | 30×70 | 30×100 | 22—27 |
| 9 | 35×50 | 35×70 | 35×100 | 27—30 |
| 10 | 40×60 | 40×70 | 40×120 | 30—35 |
| 11 | 45×60 | 45×70 | 45×120 | 35—40 |
| 12 | 50×70 | 50×80 | 50×120 | 40—45 |
| 13 | 55×70 | 55×80 | 55×120 | 45—50 |
| 14 | 60×80 | 60×90 |
| 50—55 |
| 15 | 65×80 | 65×90 | 65×120 | 55—60 |
| 16 | 70×90 | 70×120 |
| 60—65 |
| 17 | 75×90 | 75×120 |
| 65—70 |
| 18 | 80×100 | 80×120 |
| 70—75 |
| 19 | 85×100 | 85×120 |
| 75—80 |
| 20 | 90×120 | 90×150 | 140×180 | 80—90 |
| 21 | 95×120 | 95×150 |
| 90—95 |
| 22 | 100×130 | 100×160 | 150×180 | 90—95 |
| 23 | 110×130 | 110×160 | 160×180 | 95—110 |
| 24 | 120×130 | 120×160 |
| 110—120 |
| 25 |
| 130×160 | 130×180 | 120—130 |
| 26 |
| 140×160 | 140×180 | 130—140 |
| 27 |
| 150×160 |
| 140—150 |
| 28 |
| 160×160 |
| communication cable |
| 29 | Inflatable cap |
|
|
|
| 30 |
|
| (Patent spring-type) exhaust cap | power cable |
| 31 |
|
| (Patent bypass valve) exhaust cap | high voltage cable |
Applications:
LONGCHUANG Heat Shrink End Caps are widely used in various industries and
environments, including:
- Electrical and electronics industry
- Telecommunications
- Automotive
- Aerospace
- Construction
- Marine
Customization:
Customized logo
Min. order: 100
Customized packaging
Min. order: 100
Graphic customization
Min. order: 100
Customized production can be carried out according to customer
requirements
Packing and Shipping:
Packaging Details: According to the Cap's size
Packing size: 46cm*46cm*45cm
Port: Any ports of China
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex,
UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train.
We will use good packing and ensure the safety. We will be
responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock
products in 3 work days.
If without stock,or stock is not enough, we will check the delivery
time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples
free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have
over 10 years OEM experience.
