· Insulation waterproof
· Durable and resistant to wear, heat, and aging
· Sealing protection
· The inner is coated with hot melt glue
· Shrink temperature: start at 90℃, and fully recovered at 130℃
· Standard color: black, red
Applications

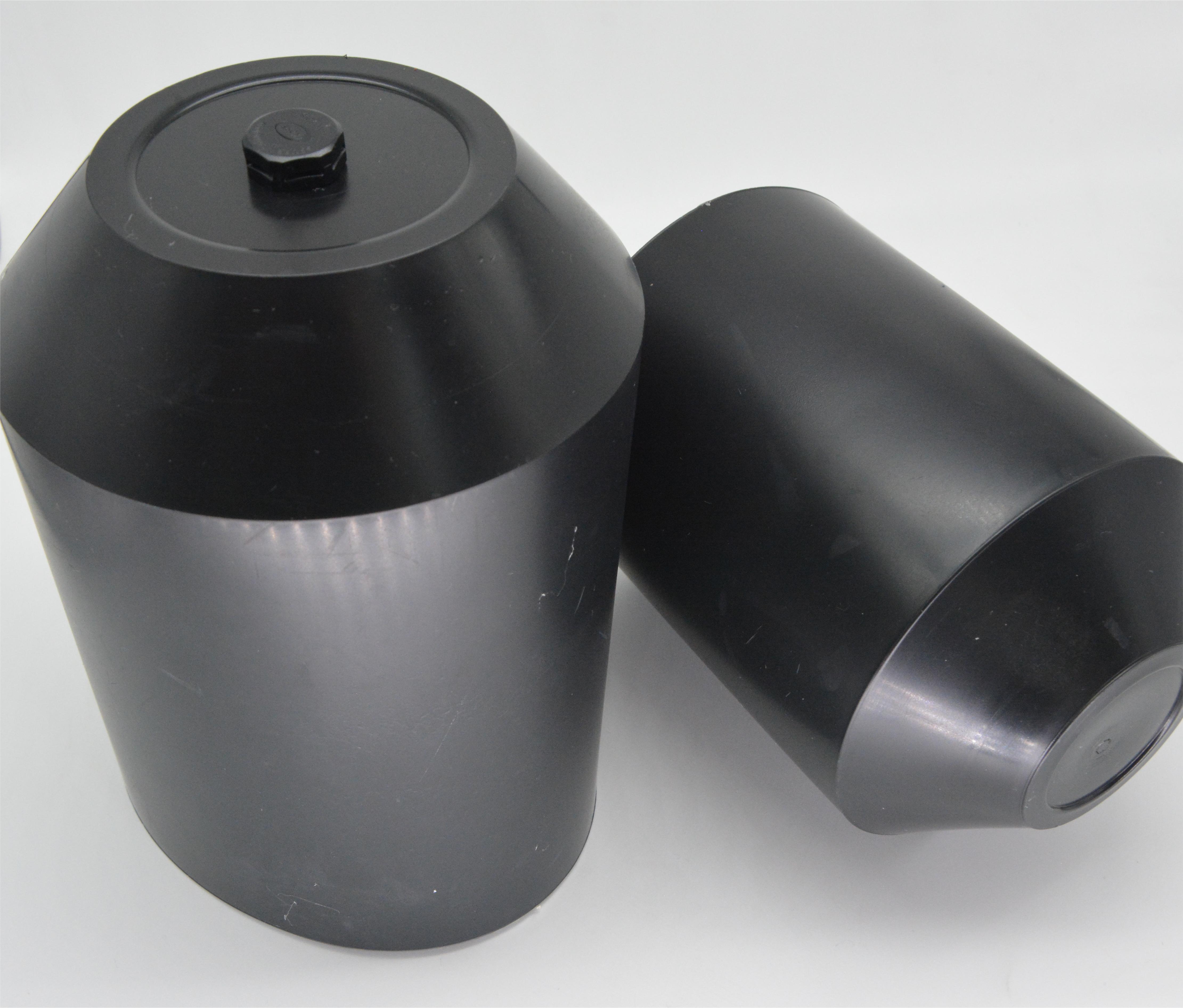

These heat shrink end caps are available in various sizes to
accommodate different cable diameters and configurations. They can
be used with a wide range of cables, including power cables,
communication cables, and low-voltage cables. This versatility
makes them suitable for diverse applications across industries.
Dimensions
| No | Ordinary specification: diameter*high(mm) | Ordinary specification: diameter*high(mm) | Ordinary specification: diameter*high(mm) | Applicable wire outer diameter Φ |
| 1 | 10×30 | 10×40 | 10×50 | 7—9 |
| 2 | 13×30 | 13×40 | 13×80 | 7—12 |
| 3 | 15×40 | 15×50 | 15×100 | 11—13 |
| 4 | 18×40 | 18×50 | 18×100 | 13—15 |
| 5 | 20×40 | 20×60 | 20×100 | 14—18 |
| 6 | 23×40 | 23×50 | 23×60 | 15—20 |
| 7 | 25×40 | 25×60 | 25×65 | 18—22 |
| 8 | 30×50 | 30×70 | 30×100 | 22—27 |
| 9 | 35×50 | 35×70 | 35×100 | 27—30 |
| 10 | 40×60 | 40×70 | 40×120 | 30—35 |
| 11 | 45×60 | 45×70 | 45×120 | 35—40 |
| 12 | 50×70 | 50×80 | 50×120 | 40—45 |
| 13 | 55×70 | 55×80 | 55×120 | 45—50 |
| 14 | 60×80 | 60×90 | | 50—55 |
| 15 | 65×80 | 65×90 | 65×120 | 55—60 |
| 16 | 70×90 | 70×120 | | 60—65 |
| 17 | 75×90 | 75×120 | | 65—70 |
| 18 | 80×100 | 80×120 | | 70—75 |
| 19 | 85×100 | 85×120 | | 75—80 |
| 20 | 90×120 | 90×150 | 140×180 | 80—90 |
| 21 | 95×120 | 95×150 | | 90—95 |
| 22 | 100×130 | 100×160 | 150×180 | 90—95 |
| 23 | 110×130 | 110×160 | 160×180 | 95—110 |
| 24 | 120×130 | 120×160 | | 110—120 |
| 25 | | 130×160 | 130×180 | 120—130 |
| 26 | | 140×160 | 140×180 | 130—140 |
| 27 | | 150×160 | | 140—150 |
| 28 | | 160×160 | | communication cable |
| 29 | Inflatable cap | | | |
| 30 | | | (Patent spring-type) exhaust cap | power cable |
| 31 | | | (Patent bypass valve) exhaust cap | high voltage cable |
Packaging and delivery
Packaging Details According to the cap size
46cm*46cm*45cm
Port Any ports of China
Produce small-sized caps as per customer requirements
Customization
Customized logo Customized packaging Graphic customization
MOQ: 5 MOQ: 5 MOQ: 5
For more customization details,
message supplier
