Silicone Coated Fiberglass Sleeve Abrasion Protection No Cracks

Ask Lasest Price
Brand Name :	LONG
Model Number :	LC-SF-1
Certification :	ISO9001
Price :	USD 0.1
Payment Terms :	T/T
Supply Ability :	3000 rolls / day
Delivery Time :	1-7days

Add to Cart

Product Details
Company Profile

Silicone Coated Fiberglass Sleeve Abrasion Protection No Cracks

Silicone fibre glass sleeve Insulation Tube Silicone Fiberglass Sleeving

Product Description

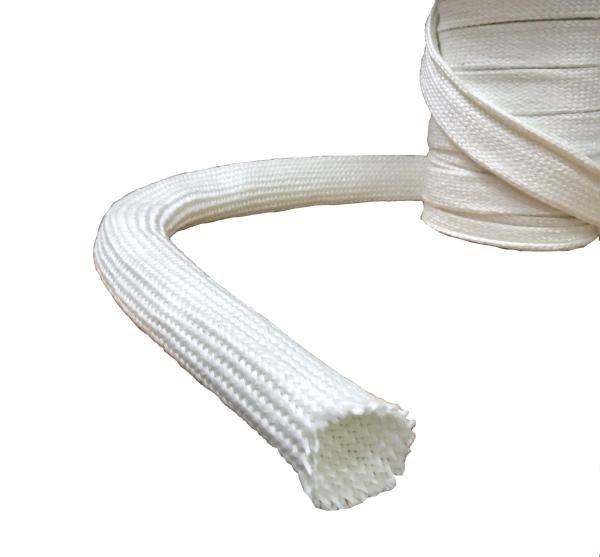

Silicone fiberglass sleeving is a type of protective sleeve or tubing made from a combination of silicone rubber and fiberglass. It is designed to provide insulation, heat resistance, and mechanical protection in various applications.

The sleeve is typically constructed with a braided or woven fiberglass outer layer and an inner layer of silicone rubber. The fiberglass layer provides excellent thermal insulation and resistance to high temperatures, while the silicone rubber layer offers flexibility, electrical insulation, and resistance to chemicals, moisture, and abrasion.

Applications

As heat insulation for cables and hoses in high heat areas.
Guarding control lines and hydraulic hoses against molten splash.
Protecting wires and cables in high temperature environments.
As a secondary electrical insulation layer and mechanical protection for high voltage cables.
Insulating hoses and small pipes to help reduce energy loss.
Abrasion protection for hoses and cables.

Dimensions

Size	Internal Diameter (mm)	Average Wall Thickness (mm)			Standard Package M/Spools
Size	Internal Diameter (mm)	1500V, 2500V	4000V	7000V	Standard Package M/Spools
0.5	0.5 ± 0.30	0.20 ± 0.10	0.40 ± 0.10	0.45 ± 0.10	200
1	1.0 ± 0.30	0.20 ± 0.10	0.40 ± 0.10	0.45 ± 0.10	200
1.5	1.5 ± 0.30	0.20 ± 0.10	0.40 ± 0.10	0.45 ± 0.10	200
2	2.0 ± 0.30	0.20 ± 0.10	0.40 ± 0.10	0.45 ± 0.10	200
2.5	2.5 ± 0.30	0.20 ± 0.10	0.40 ± 0.10	0.45 ± 0.10	200
3	3.0 ± 0.35	0.23 ± 0.10	0.47 ± 0.10	0.50 ± 0.10	100
3.5	3.5 ± 0.35	0.23 ± 0.10	0.47 ± 0.10	0.50 ± 0.10	100
4	4.0 ± 0.35	0.23 ± 0.10	0.47 ± 0.10	0.50 ± 0.10	100
4.5	4.5 ± 0.35	0.23 ± 0.10	0.47 ± 0.10	0.50 ± 0.10	100
5	5.0 ± 0.45	0.30 ± 0.10	0.50 ± 0.10	0.60 ± 0.10	100
6	6.0 ± 0.45	0.30 ± 0.10	0.50 ± 0.10	0.60 ± 0.10	100
7	7.0 ± 0.60	0.35 ± 0.10	0.50 ± 0.10	0.60 ± 0.10	100
8	8.0 ± 0.60	0.35 ± 0.10	0.50 ± 0.10	0.60 ± 0.10	100
9	9.0 ± 0.60	0.35 ± 0.10	0.50 ± 0.10	0.60 ± 0.10	50
10	10.0 ± 0.80	0.43 ± 0.10	0.55 ± 0.10	0.60 ± 0.10	50
12	12.0 ± 0.80	0.43 ± 0.10	0.55 ± 0.10	0.60 ± 0.10	50
13	13.0 ± 1.0	0.43 ± 0.10	0.55 ± 0.10	0.60 ± 0.10	50
14	14.0 ± 1.0	0.43 ± 0.10	0.55 ± 0.10	0.60 ± 0.10	50
18	18.0 ± 1.0	0.43 ± 0.10	0.55 ± 0.10	0.60 ± 0.10	25
20	20.0 ± 1.0	0.43 ± 0.10	0.55 ± 0.10	0.60 ± 0.10	25
25	25.0 ± 1.0	0.45 ± 0.10	0.60 ± 0.10	0.65 ± 0.10	25
30	30.0 ± 1.0	0.45 ± 0.10	0.60 ± 0.10	0.65 ± 0.10	25
35	35.0 ± 1.0	0.45 ± 0.10	0.60 ± 0.10	0.65 ± 0.10	25
40	40.0 ± 1.0	0.45 ± 0.10	0.60 ± 0.10	0.65 ± 0.10	25

Packaging and delivery

Packaging Details According to the tubing's size
Packing size:46*46*46cm

Port Any ports of China

Customization

Customized logo Customized packaging Graphic customization

MOQ: 100 MOQ: 100 MOQ: 100

For more customization details, message supplier

FAQ

Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
