Product Description:
LONGCHUANG has two kinds of fiberglass sleeving, one is made of
silicone rubber extruded into a tube, plus woven glass fiber, and
then coated with silicone resin high temperature treatment. One is
made of glass fiber yarn woven into a blank tube, and then coated
with silica gel after high temperature treatment. It has excellent
arc resistance, corona resistance, fire resistance, electrical
insulation and temperature resistance. It is also highly abrasive
resistant and corrosion resistant. It is widely used in various
fields such as electrical engineering, power plants,
petrochemicals, etc.
Features:
- Two types: Inner fiberglass outside braided silicone rubber(SRG-N)
Inner silicone rubber outside fiberglass braided(SRG-W)
- RoHS compliant; UL approved
- Color: White, Black, Blue, Green, Red, Yellow, Orange
- Operating temperature: -55℃ ~ 200℃
- Corona resistance: High
- Tensile Strength: High
- Insulation sleeving: Yes
- Flexible fiberglass tube: Yes
- Arc resistance: High
Technical Parameters:
| Attribute | Specification |
|---|
| Execution Standard | UL1441 | | Operating Temperature | -55℃~200℃ | | Cold Bending | No cracks | | Corona Resistance | High | | Temperature Resistance | 200℃±2℃*168h≥Half of the original voltage | | Volume Resistivity | ≥10^11Ω·cm | | Color | White, Black, Blue, Green, Red, Yellow, Orange | | Environmental Standards | RoHS, REACH | | Diameter | 1.0mm - 40.0mm |
|
|---|
Applications:

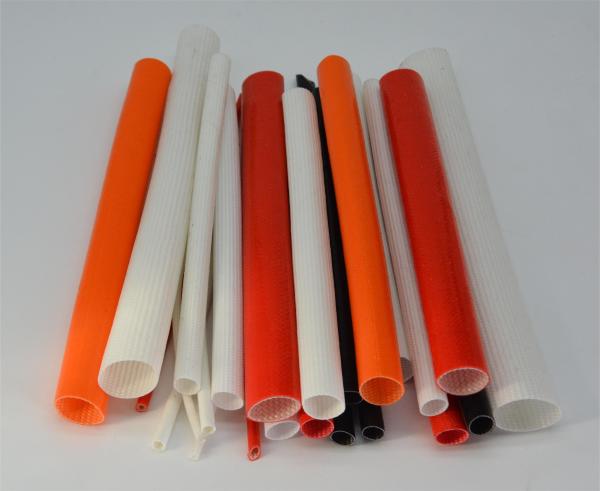

LONGCHUANG LC-SF-1 Glass Fiber Tube is manufactured with high
quality arc resistance, high temperature resistance and tensile
strength. Made of fiberglass, this tubing is available in a wide
range of colors, including white, black, blue, green, red, yellow
and orange. It is ideal for a variety of applications, from
high-temperature environments to automotive and aerospace
applications. LONGCHUANG LC-SF-1 Glass Fiber Tube is perfect for
those who are looking for a reliable and durable product that can
withstand high temperatures and extreme conditions. With its
superior strength, it is capable of withstanding mechanical and
chemical stresses without compromising its integrity. It is also
resistant to corrosion, making it an ideal choice for applications
where corrosion could be a problem. As one of the leading
fiberglass tubing suppliers, LONGCHUANG provides customers with
superior products that meet their needs and exceed their
expectations.
Dimensions
| Size | Internal Diameter (mm) | Average Wall Thickness (mm) | Standard Package M/Spools |
| 1500V, 2500V | 4000V | 7000V |
| 0.5 | 0.5 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 200 |
| 1 | 1.0 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 200 |
| 1.5 | 1.5 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 200 |
| 2 | 2.0 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 200 |
| 2.5 | 2.5 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 200 |
| 3 | 3.0 ± 0.35 | 0.23 ± 0.10 | 0.47 ± 0.10 | 0.50 ± 0.10 | 100 |
| 3.5 | 3.5 ± 0.35 | 0.23 ± 0.10 | 0.47 ± 0.10 | 0.50 ± 0.10 | 100 |
| 4 | 4.0 ± 0.35 | 0.23 ± 0.10 | 0.47 ± 0.10 | 0.50 ± 0.10 | 100 |
| 4.5 | 4.5 ± 0.35 | 0.23 ± 0.10 | 0.47 ± 0.10 | 0.50 ± 0.10 | 100 |
| 5 | 5.0 ± 0.45 | 0.30 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 100 |
| 6 | 6.0 ± 0.45 | 0.30 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 100 |
| 7 | 7.0 ± 0.60 | 0.35 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 100 |
| 8 | 8.0 ± 0.60 | 0.35 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 100 |
| 9 | 9.0 ± 0.60 | 0.35 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 50 |
| 10 | 10.0 ± 0.80 | 0.43 ± 0.10 | 0.55 ± 0.10 | 0.60 ± 0.10 | 50 |
| 12 | 12.0 ± 0.80 | 0.43 ± 0.10 | 0.55 ± 0.10 | 0.60 ± 0.10 | 50 |
| 13 | 13.0 ± 1.0 | 0.43 ± 0.10 | 0.55 ± 0.10 | 0.60 ± 0.10 | 50 |
| 14 | 14.0 ± 1.0 | 0.43 ± 0.10 | 0.55 ± 0.10 | 0.60 ± 0.10 | 50 |
| 18 | 18.0 ± 1.0 | 0.43 ± 0.10 | 0.55 ± 0.10 | 0.60 ± 0.10 | 25 |
| 20 | 20.0 ± 1.0 | 0.43 ± 0.10 | 0.55 ± 0.10 | 0.60 ± 0.10 | 25 |
| 25 | 25.0 ± 1.0 | 0.45 ± 0.10 | 0.60 ± 0.10 | 0.65 ± 0.10 | 25 |
| 30 | 30.0 ± 1.0 | 0.45 ± 0.10 | 0.60 ± 0.10 | 0.65 ± 0.10 | 25 |
| 35 | 35.0 ± 1.0 | 0.45 ± 0.10 | 0.60 ± 0.10 | 0.65 ± 0.10 | 25 |
| 40 | 40.0 ± 1.0 | 0.45 ± 0.10 | 0.60 ± 0.10 | 0.65 ± 0.10 | 25 |
Customization
Customized logo Customized packaging Graphic customization
MOQ: 100 MOQ: 100 MOQ: 100
For more customization details,
message supplier
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex,
UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train.
We will use good packing and ensure the safety. We will be
responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock
products in 3 work days.
If without stock,or stock is not enough, we will check the delivery
time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples
free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have
over 10 years OEM experience.
