Product Description:

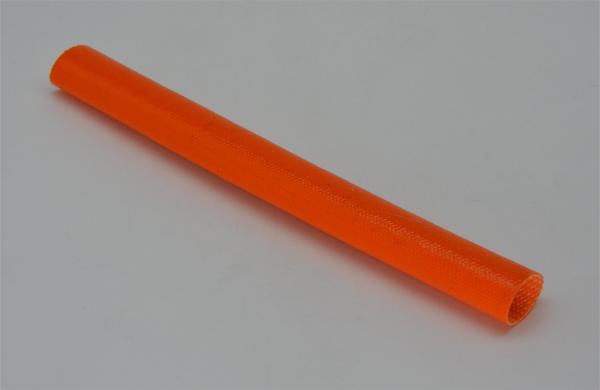

Silicone fiberglass sleeve insulation tubes provide
high-temperature resistance, thermal and electrical insulation,
flexibility, and chemical resistance. These sleeves are versatile
and find applications in numerous industries where protecting
wires, cables, and components from heat, abrasion, and electrical
hazards is crucial.
Features:
- Two types: Inner fiberglass outside braided silicone rubber(SRG-N)
Inner silicone rubber outside fiberglass braided(SRG-W)
- RoHS compliant; UL approved
- Color: White, Black, Blue, Green, Red, Yellow, Orange
- Operating temperature: -55℃ ~ 200℃
- Corona resistance: High
- Tensile Strength: High
- Insulation sleeving: Yes
- Flexible fiberglass tube: Yes
- Arc resistance: High
- Diameter: 1.0mm - 40.0mm
Technical Parameters:
| Parameter | Value |
|---|
| Execution Standard | UL1441 | | Operating Temperature | -55℃~200℃ | | Cold Bending | No cracks | | Corona Resistance | High | | Temperature Resistance | 200℃±2℃*168h≥Half of the original voltage | | Volume Resistivity | ≥10^11Ω·cm | | Color | White, Black, Blue, Green, Red, Yellow, Orange | | Environmental Standards | RoHS, REACH | | Diameter | 1.0mm - 40.0mm |
|
Applications:
Glass Fiber Tube from LONGCHUANG with High Abrasive Resistance and
Fire Resistance
LONGCHUANG's glass fiber tube, model LC-SF-1, is a high quality
product made in Jiangsu, China. It has high abrasive resistance and
temperature resistance, making it suitable for many applications.
With a temperature resistance of up to 200℃, LONGCHUANG's glass
fiber tube is able to withstand extreme temperatures and fire
resistance.
The glass fiber tube is customizable and it can be used in a wide
range of operating temperatures, from -55℃ to 200℃. LONGCHUANG's
glass fiber tube is a reliable and durable product, making it an
ideal choice for many applications.
LONGCHUANG's glass fiber tube is an ideal product for applications
that require high abrasive resistance and fire resistance, and is
suitable for use in a variety of environments. With its high
temperature resistance, LONGCHUANG's glass fiber tube is a great
choice for any application.
Dimensions
| Size | Internal Diameter (mm) | Average Wall Thickness (mm) | Standard Package M/Spools |
| 1500V, 2500V | 4000V | 7000V |
| 0.5 | 0.5 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 200 |
| 1 | 1.0 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 200 |
| 1.5 | 1.5 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 200 |
| 2 | 2.0 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 200 |
| 2.5 | 2.5 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 200 |
| 3 | 3.0 ± 0.35 | 0.23 ± 0.10 | 0.47 ± 0.10 | 0.50 ± 0.10 | 100 |
| 3.5 | 3.5 ± 0.35 | 0.23 ± 0.10 | 0.47 ± 0.10 | 0.50 ± 0.10 | 100 |
| 4 | 4.0 ± 0.35 | 0.23 ± 0.10 | 0.47 ± 0.10 | 0.50 ± 0.10 | 100 |
| 4.5 | 4.5 ± 0.35 | 0.23 ± 0.10 | 0.47 ± 0.10 | 0.50 ± 0.10 | 100 |
| 5 | 5.0 ± 0.45 | 0.30 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 100 |
| 6 | 6.0 ± 0.45 | 0.30 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 100 |
| 7 | 7.0 ± 0.60 | 0.35 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 100 |
| 8 | 8.0 ± 0.60 | 0.35 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 100 |
| 9 | 9.0 ± 0.60 | 0.35 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 50 |
| 10 | 10.0 ± 0.80 | 0.43 ± 0.10 | 0.55 ± 0.10 | 0.60 ± 0.10 | 50 |
| 12 | 12.0 ± 0.80 | 0.43 ± 0.10 | 0.55 ± 0.10 | 0.60 ± 0.10 | 50 |
| 13 | 13.0 ± 1.0 | 0.43 ± 0.10 | 0.55 ± 0.10 | 0.60 ± 0.10 | 50 |
| 14 | 14.0 ± 1.0 | 0.43 ± 0.10 | 0.55 ± 0.10 | 0.60 ± 0.10 | 50 |
| 18 | 18.0 ± 1.0 | 0.43 ± 0.10 | 0.55 ± 0.10 | 0.60 ± 0.10 | 25 |
| 20 | 20.0 ± 1.0 | 0.43 ± 0.10 | 0.55 ± 0.10 | 0.60 ± 0.10 | 25 |
| 25 | 25.0 ± 1.0 | 0.45 ± 0.10 | 0.60 ± 0.10 | 0.65 ± 0.10 | 25 |
| 30 | 30.0 ± 1.0 | 0.45 ± 0.10 | 0.60 ± 0.10 | 0.65 ± 0.10 | 25 |
| 35 | 35.0 ± 1.0 | 0.45 ± 0.10 | 0.60 ± 0.10 | 0.65 ± 0.10 | 25 |
| 40 | 40.0 ± 1.0 | 0.45 ± 0.10 | 0.60 ± 0.10 | 0.65 ± 0.10 | 25 |
Packing and Shipping:
Packaging and Shipping of Glass Fiber Tube
Glass fiber tubes are packaged and shipped in corrugated boxes to
protect the product from breakage and to ensure safe transport. The
boxes are labeled with a unique identification number and the
customer's name. The dimensions of the boxes are customized
according to the size of the tubes.
The tubes are protected from shock and vibration with bubble wrap,
foam, or other cushioning materials. Shipping labels are applied to
the boxes for easy identification and tracking. The packages are
then shipped via ground, air, or sea freight.
To ensure the safe delivery of the tubes, we use tracking numbers
to monitor the progress of the packages during the shipping
process. We also provide customers with detailed shipping
information, including estimated delivery time and shipping cost.
Customization
Customized logo Customized packaging Graphic customization
MOQ: 100 MOQ: 100 MOQ: 100
For more customization details,
message supplier
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex,
UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train.
We will use good packing and ensure the safety. We will be
responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock
products in 3 work days.
If without stock,or stock is not enough, we will check the delivery
time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples
free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have
over 10 years OEM experience.
