Product Description:

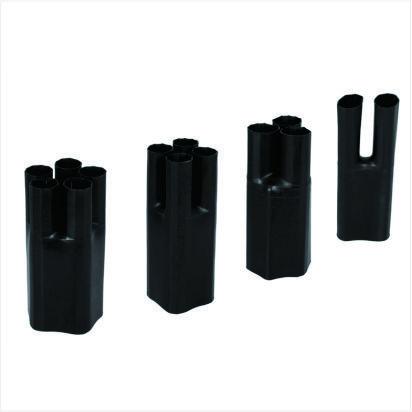

Heat shrink breakout, commonly known as heat shrinkable finger
cover or heat shrinkable hand cover, is named for its shape similar
to human palm and finger. It is made of crosslinked polyolefin
material and hot melt adhesive. It is set on the branch of
multi-core cable core and shrinks when heated. The radiation
crosslinked polyolefin material on the outer layer can act as an
electrical insulation protection.
·Manufactured from cross-linked polyolefin
·Provide sealing protection and strain relief over multi-core cable crutch,including 2-,3-,4-,and 5-core breakout
·Coated with adhesive on the body and the fingers to form a
watertight seal
·Flame-retardant breakouts are available upon customer request
·Meeting with varieties of configuration requirements ·Shrink
temperature:start at 90℃,and fully recovered at 130℃
Technical Parameters:
| Property | Test Iethod | Standard Value |
| Insulate | 0il Resistant
Breakout | Semi-conductive
Breakout |
| Tensile Strengt | ASTM-D-638 | ≥12MPa | ≥12MPa | ≥12MPa |
Elongation at Break
120℃ 168 hrs | ASTM-D-638 | ≥300% | ≥300% | ≥300% |
Tensile Strength after Aging
(120℃,168 hrs) | ASTM-D-638 | ≥10MPa | ≥10MPa | ≥10MPa |
| Elongation at Break after Aging | ASTM-D-638 | ≥230% | ≥230% | ≥230% |
| Tensile Strength after Dipping | ASTM-D-638 | - | ≥10MPa | - |
| Elongation at Break after Dipping | ASTM-D-638 | - | ≥230% | - |
| Dielectric Strength | IEC 60243 | ≥15kV/mm | ≥15kV/mm | - |
| Water Absorption | ISO 62 | ≤0.5% | ≤0.5% | ≤0.5% |
| Volume Resistivity | IEC 60093 | ≥1x1013Ω·cm | ≥1x1013Ω·cm | 102~104Ω·cm |
Specification
| Product No | Body Diameter/mm | Finger Diameter/mm | Full Length
(±5)/mm | Finger Length
(±5)/mm |
As Supplied
(Min) | After Recovered
(Max) | As Supplied
(Min) | After Recovered
(Max) |
| 2 | WRSZT2-16/8.5(00#) | 16 | 8.5 | 8 | 3.5 | 54 | 22 |
| WRSZT2-24/13(0#) | 24 | 13 | 12 | 5 | 130 | 55 |
| WRSZT2-38/17(1#) | 38 | 17 | 20 | | 145 | 65 |
| WRSZT2-48/22(2#) | 48 | 22 | 25 | 10 | 145 | 60 |
| WRSZT2-60/25(3#) | 60 | 25 | 35 | 11 | 135 | 55 |
| WRSZT2-72/25(4#) | 72 | 25 | 40 | 11 | 140 | 60 |
| 3 | WRSZT3-24/16(-2#) | 24 | 16 | 11 | 5 | 140 | 50 |
| WRSZT3-48/22(-1#) | 48 | 22 | 18 | | 170 | 55 |
| WRSZT3-60/28(0#) | 60 | 28 | 25 | 8 | 175 | 55 |
| WRSZT3-70/36(1# | 70 | 36 | 30 | 13 | 210 | 70 |
| WRSZT3-87/46(2#)*☆ | 87 | 46 | 39 | 16 | 225 | 75 |
| WRSZT3-110/54(3#) | 110 | 54 | 42 | 19 | 250 | 85 |
| WRSZT3-125/64(4#) | 125 | 64 | 58 | 25 | 245 | 95 |
| WRSZT3-140/64(5#) | 140 | 64 | 65 | 25 | 245 | 90 |
| 4 | WRSZT4-38/18(0#) | 38 | 18 | 10 | 5 | 125 | 45 |
| WRSZT4-50/25(1#) | 50 | 25 | 16 | 7 | 135 | 45 |
| WRSZT4-70/32(2#) | 70 | 32 | 23 | 9 | 180 | 65 |
| WRSZT4-82/45(3#) | 82 | 45 | 30 | 13 | 210 | 75 |
| WRSZT4-90/45(4#) | 90 | 45 | 35 | 13 | 210 | 75 |
| WRSZT4-109/54(5#) | 109 | 54 | 42 | 18 | 235 | 65 |
| 5 | WRSZT5-42/20(0#) | 42 | 20 | 11 | 5 | 155 | 55 |
| WRSZT5-57/29(1#) | 57 | 29 | 15 | 7 | 170 | 60 |
| WRSZT5-70/38(2#) | 70 | 38 | 23 | 9 | 170 | 55 |
| WRSZT5-90/50(3#) | 90 | 50 | 30 | 13 | 180 | 60 |
| WRSZT5-120/48(4#) | 120 | 48 | 39 | 14 | 205 | 80 |
| Product No | ID as supplied/mm | ID after recovered/mm |
| Body Diameter/mm | Finger Diameter/mm | Full length(L)
(±5) | Finger length(FL)(±5) | Body Diameter/mm | Finger Diameter/mm |
| Big finger(D2) | Small finger(D1) | Big finger(D2) | Small finger(D1) |
| 6 | WRSZT6-86/40(1#) | ≥86 | ≥32 | ≥20 | 220 | 55 | ≤40 | ≤11 | ≤8 |
| VRSZT6-133/53(2#) | ≥133 | ≥55 | ≥31 | 220 | 55 | ≤53 | ≤16 | ≤11 |
Applications:
It is suitable for sealing insulation protection at the branch of
multi-core cable, easy operation, reliable performance and long
service life. It is generally used with 1KV, 10KV, 35KV heat
shrinkable indoor cable terminals or outdoor cable terminals.
Customization:
Customized Service for Electrical Cable Accessories - KORE KR-BC-02
Brand Name: KORE
Model Number: KR-BC-02
Place of Origin: JIANGSU, CHINA
Logo: Custom Can Do
Origin: CN(Origin)
Core: 2/3/4/5/6 Cores
Custom Pack: Can Do
Lead Time: 3-7Days
Fire-resistant: Our Electrical Cable Accessories are designed to be
fire-resistant, ensuring safety and reliability in any environment.
RoHS Compliant: Our products are RoHS compliant, meeting
international standards for environmental safety.
Easy Installation and Maintenance: We understand the importance of
easy installation and maintenance, and our products are designed
with this in mind for maximum convenience.
