Product Description:
Busbar protection cover
Products made of radiation cross-linked polyolefin material, with excellent physical and chemical electrical performance, it is an insulation treatment material where the busbar connects. It is also suitable for 1KV / 10KV / 35KV voltage class, and has various shape such as "I", "T" and "L". With electrical insulation, solder joint antirust and anticorrosion, mechanical protection, reduce phase spacing and other functions. Widely used in electronics, communication, machinery, manufacturing and other fields
Electrical cable tray accessories
Features
Bus bar cover
•Manufactured from cross linked polyolefin
•Used to offer insulation protection for busbar in switchgear and substation
•Protects against short circuit and electrical leakage cause by small animals
•Reduces busbar clearance requirements
•RoHS compliant
•Standard colors: red, yellow, green, other colors can be customized
| Property | Test Method | Standard Value |
| Tensile Strength | ASTNf-D-638 | ≥8MPa |
| Elongation at Break | ASTM-D-638 | ≥300% |
| Tensile Strength after Aging | ASTM-D-638 | ≥6.9MPa(130℃,168hrs) |
| Elongation at Break after Aging | ASTM-D-638 | ≥100%(130℃,168hrs) |
| Hardness (Shore A) | ISO S68 | ≤90 |
| Dielectric Strength | IEC 60243 | ≥25kV/mm |
| Volume Resisitivity | IEC 60093 | ≥10^14Ω.cm |
| Flammabilrty (Oxygen Index) | ISO45S9 | ≥28 |
Selection Table:
Bus bar cover
| No | I Type | T Type | L Type |
| (AXB) | L | W | H | L | W | H | L | W | H |
| 30x8 | 95 | 35 | 50 | 05 | 35 | 60 | 70 | 35 | 60 |
| 40x8 | 125 | 45 | 50 | 40 | 45 | 60 | 75 | 45 | 55 |
| 50x8 | 135 | 55 | 55 | 55 | 55 | 65 | 90 | 55 | 65 |
| 60x8 | 165 | 65 | 75 | 165 | 65 | 75 | 100 | 65 | 75 |
| 80x10 | 185 | 85 | 75 | 195 | 85 | 75 | 30 | 85 | 75 |
| 100x10 | 220 | 105 | 75 | 215 | 105 | 75 | 40 | 105 | 75 |
| 120x10 | 235 | 125 | 75 | 245 | 25 | 75 | 165 | 125 | 75 |
| 150x10 | 260 | 155 | 75 | 285 | 155 | 75 | 195 | 155 | 75
|
Remark:
L=length of cover; W=width of cover; H=height of cover
A=width of busbar; B=thickness of busbar
(All dimensions are in mm)
*According to customer drawings the special products for a variety of inlet and outlet of transformers,fuses, switches,surge arresters and other protective cover are available.
Application

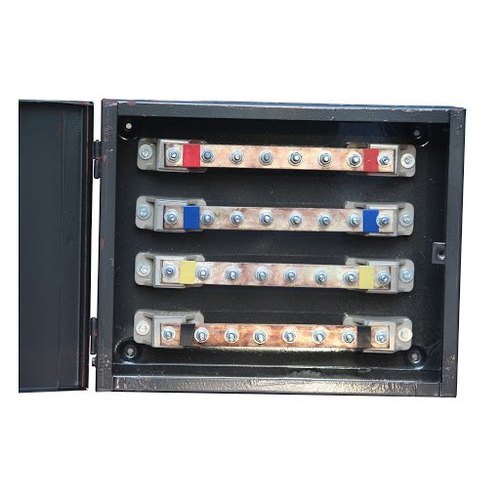

Bus bar cover is widely used in insulation protection of copper row node of high and low voltage switchgear, insulation protection of transformer inlet and exit line, insulation protection of separate nodes and whole copper row inside and outside substation, and insulation protection of overhead line and connection fittings
Packaging and delivery
According to the tubing's size
Packing size:46*46*47cm
Port
Any ports of China
Customization
Customized logo Customized packaging Graphic customization
MOQ: 10 MOQ: 10 MOQ: 10
For more customization details, message supplier
FAQ:
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
