Product Description:
Heat Shrink Identification Sleeve
AMS marker sleeves are designed to meet the wire and cable
permanent marking needs. It is made of durable and flame retardant
heat shrinkable polyolefin, and radiation cross-linked by high
energy electronic beam.
Features:
Heat Shrink Identification Sleeve
| Material | The sleeving shall be fabricated from irradiated, thermally
stabilized and flame retarded modified polyolefin compound |
| Application range | Military industry; Aerospace & defense; Marine; |
| Operating temperature range | -55---+135 ℃ |
| Minimum recovery temperature | +135 ℃ |
| Maximum storage temperature | +50 ℃ |
| Shrink ratio | 2:1, 3:1 |
| Color | White, Yellow, other color is available if ordered |
| Printing mode | Single sided printing and Double sided printing formats available |
| Supplied mode | Either Continuous type or Ladder format type is available |
| Recommended Printers | Either Thermal transfer printer or Laser printer is OK. |
| Recommended Ribbons | WO-80500BK resin ribbon, Black |
Applications:
Heat Shrink Identification Sleeve
Military industry; Aerospace & defense; Marine;
Dimensions:
Shrink Ratio-2X
| Part Number | As Supplied(mm) | After Recovery(mm) |
| ID(D) | Flatten Width(W) | Double Wall Thickness | ID(d) | Single Wall Thickness |
| AMS-M-2X-1.6- | 2.00±0.20 | 3.7±0.3 | 0.48±0.10 | ≤0.79 | 0.45±0.06 |
| AMS-M-2X-2.4- | 2.79±0.20 | 5.0±0.3 | 0.48±0.10 | ≤1.18 | 0.49±0.06 |
| AMS-M-2X-3.2- | 3.64±0.23 | 6.3±0.4 | 0.48±0.10 | ≤1.59 | 0.51±0.06 |
| AMS-M-2X-4.8- | 5.26±0.25 | 8.9±0.4 | 0.49±0.10 | ≤2.36 | 0.54±0.06 |
| AMS-M-2X-6.4- | 6.92±0.28 | 11.5±0.4 | 0.50±0.10 | ≤3.18 | 0.56±0.06 |
| AMS-M-2X-9.5- | 10.2±0.32 | 16.7±0.5 | 0.51±0.11 | ≤4.75 | 0.59±0.06 |
| AMS-M-2X-12.7- | 13.5±0.36 | 21.8±0.6 | 0.52±0.11 | ≤6.35 | 0.60±0.07 |
| AMS-M-2X-19.0- | 20.1±0.40 | 32.2±0.6 | 0.53±0.11 | ≤9.53 | 0.62±0.07 |
| AMS-M-2X-25.0- | 26.7±0.45 | 42.5±0.7 | 0.55±0.12 | ≤12.70 | 0.63±0.07 |
| AMS-M-2X-38.0- | 39.8±0.51 | 63.2±0.8 | 0.57±0.12 | ≤19.10 | 0.64±0.07 |
| AMS-M-2X-51.0- | 53.0±0.56 | 83.9±0.9 | 0.58±0.13 | ≤25.40 | 0.64±0.08 |
| AMS-M-2X-76.0- | 79.4±0.56 | 125.3±1.0 | 0.59±0.13 | ≤38.10 | 0.64±0.09 |
Shrink Ratio-3X
| Part Number | As Supplied(mm) | After Recovery(mm) |
| ID(D) | Flatten Width(W) | Double Wall Thickness | ID(d) | Single Wall Thickness |
| AMS-M-3X-1.6- | 2.00±0.20 | 3.7±0.3 | 0.47±0.10 | ≤0.53 | 0.52±0.06 |
| AMS-M-3X-2.4- | 2.79±0.20 | 5.0±0.3 | 0.47±0.10 | ≤0.79 | 0.57±0.06 |
| AMS-M-3X-3.2- | 3.64±0.23 | 6.3±0.4 | 0.48±0.10 | ≤1.06 | 0.61±0.06 |
| AMS-M-3X-4.8- | 5.26±0.25 | 8.9±0.4 | 0.49±0.10 | ≤1.59 | 0.67±0.06 |
| AMS-M-3X-6.4- | 6.92±0.28 | 11.5±0.4 | 0.50±0.10 | ≤2.13 | 0.71±0.06 |
| AMS-M-3X-9.5- | 10.2±0.32 | 16.7±0.5 | 0.52±0.11 | ≤3.18 | 0.77±0.06 |
| AMS-M-3X-12.7- | 13.5±0.36 | 21.8±0.6 | 0.53±0.11 | ≤4.23 | 0.80±0.07 |
| AMS-M-3X-19.0- | 20.1±0.40 | 32.2±0.6 | 0.55±0.11 | ≤6.35 | 0.84±0.07 |
| AMS-M-3X-25.0- | 26.7±0.45 | 42.5±0.7 | 0.565±0.12 | ≤8.47 | 0.86±0.07 |
| AMS-M-3X-38.0- | 39.8±0.51 | 63.2±0.8 | 0.57±0.12 | ≤12.90 | 0.89±0.07 |
| AMS-M-3X-51.0- | 53.0±0.56 | 83.9±0.9 | 0.57±0.12 | ≤17.20 | 0.90±0.08 |
| AMS-M-3X-76.0- | 79.4±0.56 | 125.3±1.0 | 0.57±0.13 | ≤25.80 | 0.92±0.09 |
Packaging and delivery

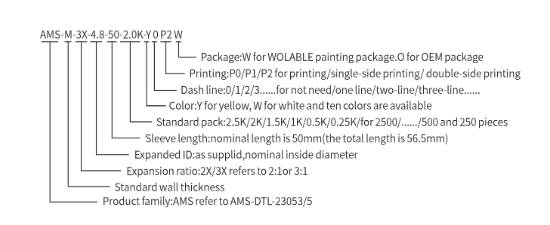

Ordering Size
(AMS-M-2X/3X) | Ladder Format Type | Continuous Type |
| A&B-Small Box Packing(PCS/Box) | A-Paper reel Packing(m/reel) | B-Plastic reel Packing(m/reel) |
| Φ1.6 | 2500 | 50 | 25 |
| Φ2.4 | 2500 | 50 | 25 |
| Φ3.2 | 2000 | 100 | 25 |
| Φ4.8 | 2000 | 100 | 25 |
| Φ6.4 | 2000 | 100 | 25 |
| Φ9.5 | 1000 | 100 | 25 |
| Φ12.7 | 1000 | 100 | 25 |
| Φ19.0 | 500 | 100 | 25 |
| Φ25.0 | 500 | 100 | 25 |
| Φ38.0 | 500 | 50 | 25 |
| Φ51.0 | 250 | 50 | 25 |
| Φ76.0 | 250 | 50 | 25 |
Delivery: Any ports of China
Customization
Customized logo Customized packaging Graphic customization
MOQ: 10 MOQ: 10 MOQ: 10
For more customization details,
message supplier
FAQ:
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex,
UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train.
We will use good packing and ensure the safety. We will be
responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock
products in 3 work days.
If without stock,or stock is not enough, we will check the delivery
time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples
free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have
over 10 years OEM experience.
