Product Description:
Heat Shrink Identification Sleeve
RSFR marker sleeve is a flattened, heat-shrinkable tubing intended
for wire and cable harness identification. It can also be used for
applications where limited fire hazard characteristics are
necessary. When RSFR is printed with Woer recommended printers and
ink ribbons, the marks remain legible, durable, even when exposed
to abrasion, aggressive cleaning solvents, and industrial fluids.
Features:
Heat Shrink Identification Sleeve
| Material | The sleeving shall be fabricated from irradiated, thermally
stabilized and flame retarded modified polyolefin compound
containing no halogens or cadmium in the formulation. |
| Application range | commercial ,Industrial environment |
| Operating temperature range | -55 ~ 125 ℃ |
| Minimum recovery temperature | 125 ℃ |
| Maximum storage temperature | +50 ℃ |
| Shrink ratio | 2:1, 3:1 |
| Color | White, Yellow, other color is available if ordered |
| Printing mode | Single sided printing and Double sided printing formats available |
| Supplied mode | Either Continuous type or Ladder format type is available |
| Recommended Printers | Thermal transfer printer |
| Recommended Ribbons | N85 resin ribbon, Black, 100mm(width)*300m(length) |
Applications:
Heat Shrink Identification Sleeve
Commercial ,Industrial environment
Dimensions:
Shrink Ratio-2X

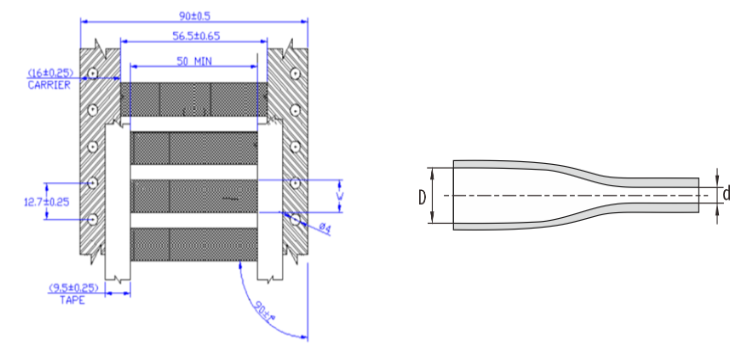

| Part Number | As Supplied(mm) | After Recovery(mm) |
| ID(D) | Flatten Width(W) | Double Wall Thickness | ID(d) | Single Wall Thickness |
| RSFR-M-2X-2.4- | 2.79±0.20 | 0.48±0.10 | 5.0±0.3 | ≤1.18 | 0.49±0.06 |
| RSFR-M-2X-3.2- | 3.64±0.23 | 0.48±0.10 | 6.3±0.4 | ≤1.59 | 0.51±0.06 |
| RSFR-M-2X-4.8- | 5.26±0.25 | 0.49±0.10 | 8.9±0.4 | ≤2.36 | 0.54±0.06 |
| RSFR-M-2X-6.4- | 6.92±0.28 | 0.50±0.10 | 11.5±0.4 | ≤3.18 | 0.56±0.06 |
| RSFR-M-2X-9.5- | 10.2±0.32 | 0.51±0.11 | 16.7±0.5 | ≤4.75 | 0.59±0.06 |
| RSFR-M-2X-12.7- | 13.5±0.36 | 0.52±0.11 | 21.8±0.6 | ≤6.35 | 0.60±0.07 |
| RSFR-M-2X-19.0- | 20.1±0.40 | 0.53±0.11 | 32.2±0.6 | ≤9.53 | 0.62±0.07 |
| RSFR-M-2X-25.0- | 26.7±0.45 | 0.55±0.12 | 42.5±0.7 | ≤12.70 | 0.63±0.07 |
| RSFR-M-2X-38.0- | 39.8±0.51 | 0.57±0.12 | 63.2±0.8 | ≤19.10 | 0.64±0.07 |
| RSFR-M-2X-51.0- | 53.0±0.56 | 0.58±0.13 | 83.9±0.9 | ≤25.40 | 0.64±0.08 |
Shrink Ratio-3X
| Part Number | As Supplied(mm) | After Recovery(mm) |
| ID(D) | Flatten Width(W) | Double Wall Thickness | ID(d) | Single Wall Thickness |
| RSFR-M-3X-2.4- | 2.79±0.20 | 0.47±0.10 | 5.0±0.3 | ≤0.79 | 0.57±0.06 |
| RSFR-M-3X-3.2- | 3.64±0.23 | 0.48±0.10 | 6.3±0.4 | ≤1.06 | 0.61±0.06 |
| RSFR-M-3X-4.8- | 5.26±0.25 | 0.49±0.10 | 8.9±0.4 | ≤1.59 | 0.67±0.06 |
| RSFR-M-3X-6.4- | 6.92±0.28 | 0.50±0.10 | 11.5±0.4 | ≤2.13 | 0.71±0.06 |
| RSFR-M-3X-9.5- | 10.2±0.32 | 0.52±0.11 | 16.7±0.5 | ≤3.18 | 0.77±0.06 |
| RSFR-M-3X-12.7- | 13.5±0.36 | 0.53±0.11 | 21.8±0.6 | ≤4.23 | 0.80±0.07 |
| RSFR-M-3X-19.0- | 20.1±0.40 | 0.55±0.11 | 32.2±0.6 | ≤6.35 | 0.84±0.07 |
| RSFR-M-3X-25.0- | 26.7±0.45 | 0.56±0.12 | 42.5±0.7 | ≤8.47 | 0.86±0.07 |
| RSFR-M-3X-38.0- | 39.8±0.51 | 0.57±0.12 | 63.2±0.8 | ≤12.90 | 0.89±0.07 |
| RSFR-M-3X-51.0- | 53.0±0.56 | 0.57±0.13 | 83.9±0.9 | ≤17.20 | 0.90±0.08 |
Part Numbering System
Color:
| Color code | BL | Br | R | Or | Y | G | Blu | V | Gr | W |
| Color | Black | Brown | Red | Orange | Yellow | Green | Blue | Violet | Grey | White |
Note:Yellow and white are standard, other color is available if
ordered.
Physic performance:
| Property | Unit | Testing Requirement | KORE Results |
| Tensile strength | MPa | 10.3 | 14.3 |
| Ultimate Elongation | % | 200 | 330 |
| Low temperature flexibility 4 hours at -55±1℃ | - | No cracking | Pass(no cracking) |
| Dielectric strength | kV/mm | 19.7 | 20 |
| Volume Resistivity | Ω·cm | 10^14 | 2.0×10^14 |
| Corrosive effect | - | No corrosive | pass |
| Heat aging | - | 168 hours at 158±2 ℃ | Pass(no cracking, print is legible) |
| Print performance | Rubs | SAE-AS 81531 | Pass(legible after 100 rubs) |
| Strokes | MIL-STD-202F | Pass(legible after 100 Strokes) |
Packaging and delivery
Ordering Size
(RSFR-M-2X/3X) | Ladder Format Type | Continuous Type |
| Small Box Packing(PCS/Box) | A-Paper reel Packing(m/reel) |
| Φ2.4 | 2500 | 50 |
| Φ3.2 | 2000 | 100 |
| Φ4.8 | 2000 | 100 |
| Φ6.4 | 2000 | 100 |
| Φ9.5 | 1000 | 100 |
| Φ12.7 | 1000 | 100 |
| Φ19.0 | 500 | 100 |
| Φ25.0 | 500 | 100 |
| Φ38.0 | 500 | 50 |
| Φ51.0 | 250 | 50 |
Delivery: Any ports of China
Customization
Customized logo Customized packaging Graphic customization
MOQ: 10 MOQ: 10 MOQ: 10
For more customization details,
message supplier
