Product Description:
Heat Shrink Right Angle/In-line Bushing Boots are specialized
electrical accessories used to provide insulation and sealing for
cable terminations at right angles or inline connections. These
boots are designed to protect cable terminations from moisture,
dust, and other environmental contaminants, ensuring proper
insulation and preventing electrical leakage.
Features:
• Manufactured from polyolefin,inner coated with hot-melt adhesive
at the ends
• Excellent insulation,flame retardant,thermal stability,etc
• Used to protect cable against flashover or surges induced in
switchgear and transformer
• Shaped components to meet arange ofrequirements
Applications:
These bushing boots are commonly used in a variety of electrical
applications, including power distribution systems, transformers,
switchgear, and outdoor cable connections. They are particularly
useful in areas where cable terminations are exposed to harsh
environmental conditions, such as heavy rain, high humidity, or
extreme temperatures.
Technical Parameters:
| Property | Test Method | Standard Value |
| Tensile Strength | ASTM-D-638 | ≥10MPa |
| Elongation at Break | ASTM-D-638 | ≥300% |
| Tensile Strength after Aging | ASTM-D-638 | ≥8MPa(130℃,168 hrs) |
| Elongation at Break after Aging | ASTM-D-638 | ≥240%(130℃,168 hrs) |
| Dielectric Strength | IEC 60243 | ≥25kV/mm |
| Tracking Resistance | EC60587 | 1A 3.5 |
| Volume Resistivity | IEC 60093 | ≥1×10^14Ω·cm |
| Dielectric Constant | ASTM-D-150 | ≤3.0 |
| Longitudinal Shrinkage | ASTM-D-2671 | ≤10% |
| Eccentricity | ASTM-D-2671 | ≤30% |
| Water Absorption | ISO 62 | ≤0.5% |
| Flammability (Oxygen Index) | IS0 4589 | ≥25 |
| Copper Corrosion | ASTM-D-2671 | No corrosion (130℃,168 hrs) |
| Cold Bend | ASTM-D-2671 | No cracking (-40℃,4 hrs) |
| Heat Shock | ASTM-D-2671 | No cracking or flowing(160℃,4 hrs) |

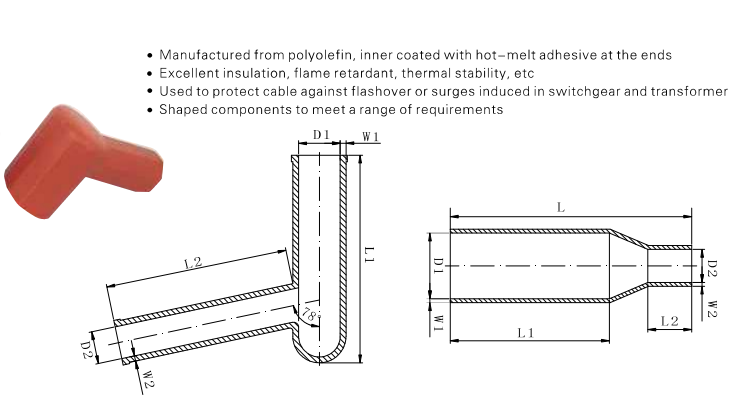

| Product No | As Supplied/mm | After Recovered/mm |
| D1(Min) | D2(Min) | D1(Max) | D2(Max) | L1(Nom.) | L2(±10%) | L(±10%) | W1(±10%) | W2(±10%) |
| Right Angle Boot |
| WRSJX-R1 | 80 | 35 | 36 | 18 | 170 | 125 | -- | 4.2 | 3.8 |
| WRSJX-R2 | 80 | 50 | 36 | 18 | 170 | 125 | -- | 4.2 | 3.8 |
| WRSJX-R3 | 80 | 50 | 36 | 27 | 160 | 140 | -- | 4.2 | 3.8 |
| WRSJX-R4 | 95 | 70 | 38 | 28 | 160 | 140 | -- | 4.2 | 3.8 |
| WRSJX-R5 | 145 | 68 | 72 | 34 | 215 | 140 | -- | 4.2 | 4.2 |
| In-line Bushing Boot |
| WRSJX-S1 | 80 | 34 | 32 | 19 | 145 | 30 | 185 | 3.2 | 3.2 |
| WRSJX-S2 | 80 | 58 | 32 | 19 | 145 | 30 | 185 | 3.2 | 3.2 |
| WRSJX-S3 | 40 | 90 | 65 | 33 | 145 | 40 | 185 | 3.2 | 3.2 |
