● 3:1 shrink ratio, not Flame-retardant
● Seal and protect cable splice and terminations
● Rugged mechanical protection
● Complete moisture sealing
● Strain relief for delicate wire connections
● High resistance to impact and abrasion
● Thermoplastic adhesive liner for complete environmental
protection and insulation
● Continuous operating temperature:-45℃-125℃
● Fully shrink temperature: 125℃

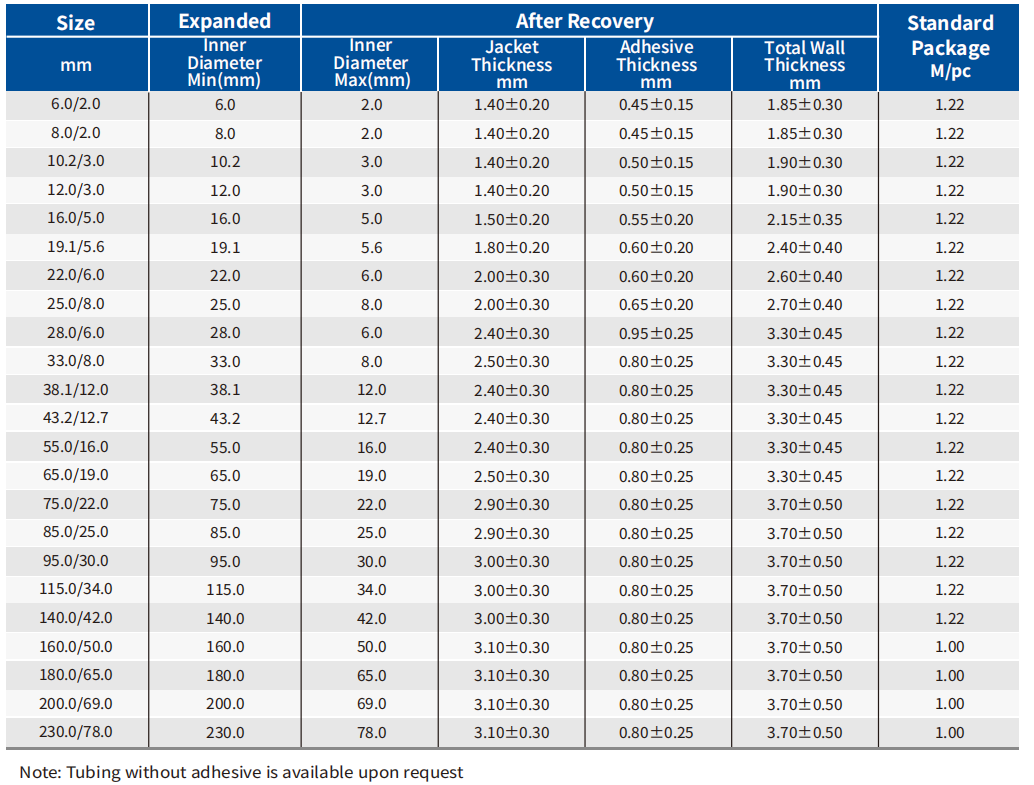

Dimensions
Technical Data
| Property | Test Method | Standard | Typical Performance |
| Tensile Strength(MPa) | ASTM D2671 | ≥12 | 12.35 |
| Elongation(%) | ASTM D2671 | ≥200 | 468.62 |
| Tensile Strength after aging (MPa) | UL224 158℃X168hr | ≥8.4 | 11.38 |
| Elongation after aging(%) | UL224 158℃X168hr | ≥200 | 390.25 |
| Dieletric strength(kV/mm) | IEC 60243 | ≥15 | 20.34 |
| Volume resistivity(Ω.cm) | IEC 60093 | ≥1X10^14 | 2.52X10^14 |
Hot Melt Adhesive Property
| Property | Test Method | Standard |
| Water Absorption | ASTM D570 | <0.2% |
| Sofening Point(℃) | ASTM E28 | 95±5 |
| Strength of pearing(PE) | ASTM D 1000 | 120N/25mm |
| Strength of pearing(AL) | ASTM D 1000 | 80N/25mm |
Packaging and delivery
Packaging Details: According to the tubing's size
Packing size: 46cmx46cmx45cm
Port: Any ports of China
Customization
Customized logo Customized packaging Graphic customization
MOQ: 100 MOQ: 100 MOQ: 100
For more customization details,
message supplier
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex,
UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train.
We will use good packing and ensure the safety. We will be
responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock
products in 3 work days.
If without stock,or stock is not enough, we will check the delivery
time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples
free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have
over 10 years OEM experience.
