TP Series Tube Marking Printer Wire Marking Machine
Basic functions and features:
Wire Marking Machine

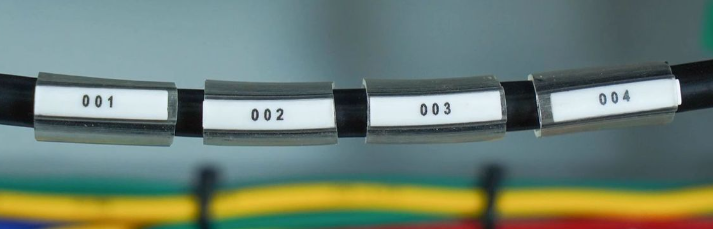

Printing sleeve, sticker, heat shrink tube
Can print Chinese, English and electricity and other symbols
Automatic tube feeding, cleaning, pressing, ribbon pre-tightening,
half cut, full cut
Printing speed up to 40 segments/min (half cut, 20mm/ segment)
Ribbon and sticker usage can be checked at any time, timely grasp
the consumption of consumables
Unique power failure memory function, do not have to worry about
the loss of files caused by power failure
Choose high quality roller and international standard damping,
quality is more stable, durable
Product Parameters:
Wire Marking Machine
Interface: USB2.0, special editing software; Bluetooth
Printing method: Heat transfer
Resolution: 300dpi
Tubing printing speed: 40 sections/min (half cut, 20mm/ section)
Sticker printing speed: 40 sections/min (half cut, 20mm/ section)
Print text height: tubing number 1-5 , sticker number 1-7
Repeat range: 1-200 times
Serial number printing range: 0-999/000-999; A-Z/a-z
Section length range: 6100mm
Printable characters: Chinese, English, numbers and special symbols
Keyboard: Standard laptop keyboard
Cutting mode: automatic half cut, automatic full cut
Storage capacity: can store 100 files, each file can be input 200
paragraphs
Enter a maximum of characters: 12000000
LCD display: LCD white backlight, can display 2 lines of text, 10
kinds of current Settings
Cursor print function: Yes
Test key function: Yes
One-touch function: Yes
First and last function: Yes
Delete paragraph function: Yes
Optional Thermal Transfer Ribbons color: red, white, black
Available sticker size: 6mm, 9mm, 12mm
Available tubing sizes: Φ2.5 - Φ6.0 mm
Operating environment: temperature 15ºC-35ºC; Humidity 15%-80%RH
(no condensation)
Dimensions: 320mmx280mmx80mm
Weight: 3KG
Power supply: 12V, DC 3A
Standard: instruction manual, warranty card, Certificate, casing
adjuster, power adapter (including power cord), trial ribbon, trial
sticker, factory print test sample, hard suitcase, TP series
editing software CD (TP76I), USB computer connection (TP76I)
Packaging and delivery
Packing size:320mmx280mmx80mm
Any ports of China
Customization:
Customized logo
Min. order: 1
Customized packaging
Min. order: 1
Graphic customization
Min. order: 1
FAQ:
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex,
UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train.
We will use good packing and ensure the safety. We will be
responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock
products in 3 work days.
If without stock,or stock is not enough, we will check the delivery
time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples
free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have
over 10 years OEM experience.
